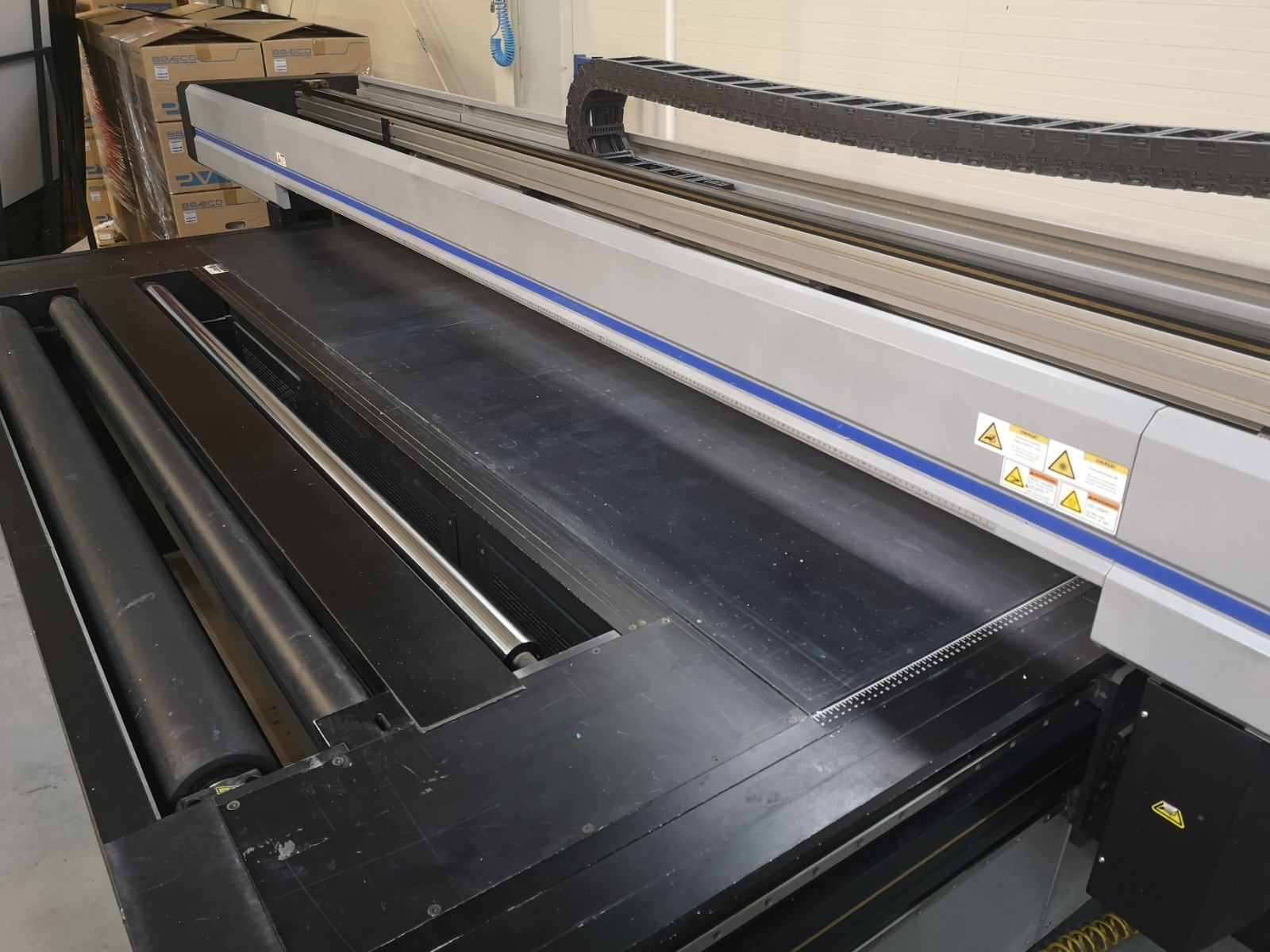

InkTec Jetrix 2513 FRQ – Large Format Digital Printers

Available

  • Production Year
  • No Colors

Reference number: A4P02209

Printing Configuration: CMYK + W + Varnish or Primer Print Heads: Two color heads – Dimatix FujiFilm Spectra Sapphire QS-256–10pl (total of 12 heads in the print carriage) Printing Parameters: – Bi-directional printing speed – Grayscale technology with Versa Drop (10/20/30 picoliters) Production Times: – Quality 1: 5 m 56 s for 244×122 cm at 30 sqm/hour – Quality 2: 8 m 54 s for 244×122 cm at 20 sqm//hour – High Quality: 11 m 56 s for 244×122 cm at 15 sqm//hour – Premium Quality: 17 m 48 s for 244×122 cm at 10 sqm//hour Technical Specifications: – Work Table Size: 244×122 cm (capable of printing up to 259x152cm with software adjustments) – Maximum Material Print Height: 110 mm – Print Resolution Options: 1200x800dpi, 1200x600dpi, 600x600dpi (with GMask option to eliminate clipping effect) – Automatic Suction Sections: Three on the table, plus a separate section for Roll to Roll printing at the front Curing Technology: UV curing (polymerization) with halogen and mercury lamps Power Consumption: 5.75A at 230V supply voltage Additional Information: – The printer is in good working order and has been in constant use. – It has been serviced regularly and was converted to SunChemical 804 ink in September 2024, ensuring consistent printing quality. – The printer includes a computer unit and monitor with RIP – Caldera installed.

Please note that this description may have been translated automatically. Contact us for further information. The details are only indicative.
