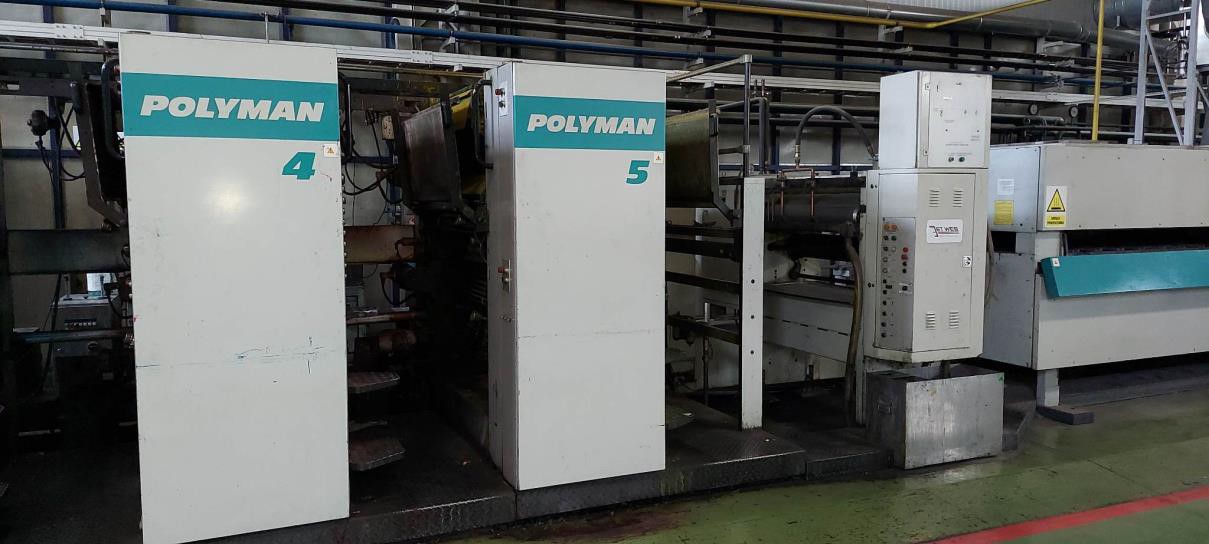

Man Roland Polyman – Heatset Web Printing Presses

Available

  • Production Year
  • No Colors

Reference number: A4P-E-284

Cut off: 630 mm Maximum production speed 40.000 cycles/hour The machine is configured as a single web and consists of the following components: 1 BUTLER paper roll unwinder model ME-40C 1 STORK CONTIWEB 1020 retracting unit – with automatic adjustment of web tension 1 GRAFOTEC M100 paper break protection device 5 POLYMAN double printing units equipped with: – plate cylinders equipped with a registry system for accurate positioning of the printing plate – motorically adjustable peripheral, side registers – manually adjustable diagonal registers – ink unit with 3 inking rollers – ink level regulation system – remote adjustment of inking units – hydromixalcohol dampening unit – automatic central oil lubrication 1 BALDWIN IMPACT PREPAC automatic system for washing of blankets 1 TECHNOTRANS dampening circulation system type FAZ-C 20000-5 1 GRAFOTEC paper break protection device behind the fifth printing unit 1 paper guiding system with rollers and paper break sensors 1 MEG Sigma 80+ hot air dryer 1 MANROLAND cooling cylinder unit – 4 chromium-plated cooling cylinders – 4 inputs for connection to the refrigeration unit 1 manroland pin folder in 1:2:3 system with: – transverse, longitudinal perforation and grooving – flap cylinder (3 flaps) for 1 transverse fold and up to 2 transverse folds – chopper for 2 longitudinal folds – collecting and cutting device for cutting products on ½ circumference 1 equipment of folder with – E&L paper web edge adjuster – WEKO siliconizing unit – cut-off register – 2 pairs of motorized turning bars – 1 full-width former 1 Combined gluing and softening device, make PLANATOL, Combijet 5 DT 1 plano device OXYDRY 40B. 1 JETWEB unit for applying glue, varnish or ink before the drying oven 1 JETWEB unit for die-cutting and perforating with magnetic cylinder. 2 JETWEB units for longitudinal plow break of paper web 1 adhesive unit for die-cut advertising 1 UV drying oven 1 machine operating station with 2 monitor workstations and 2 desktops 1 electric drive equipment with multifunctional control cabinet for drives 1 plate perforator 1 offset plate bending machine 1 plate scanner 2019: an upgrade of the POLYMAN machine control took place – a retrofit of the HP1000 machine management system and a retrofit of the folder computer. PECOM Server

Please note that this description may have been translated automatically. Contact us for further information. The details are only indicative.
