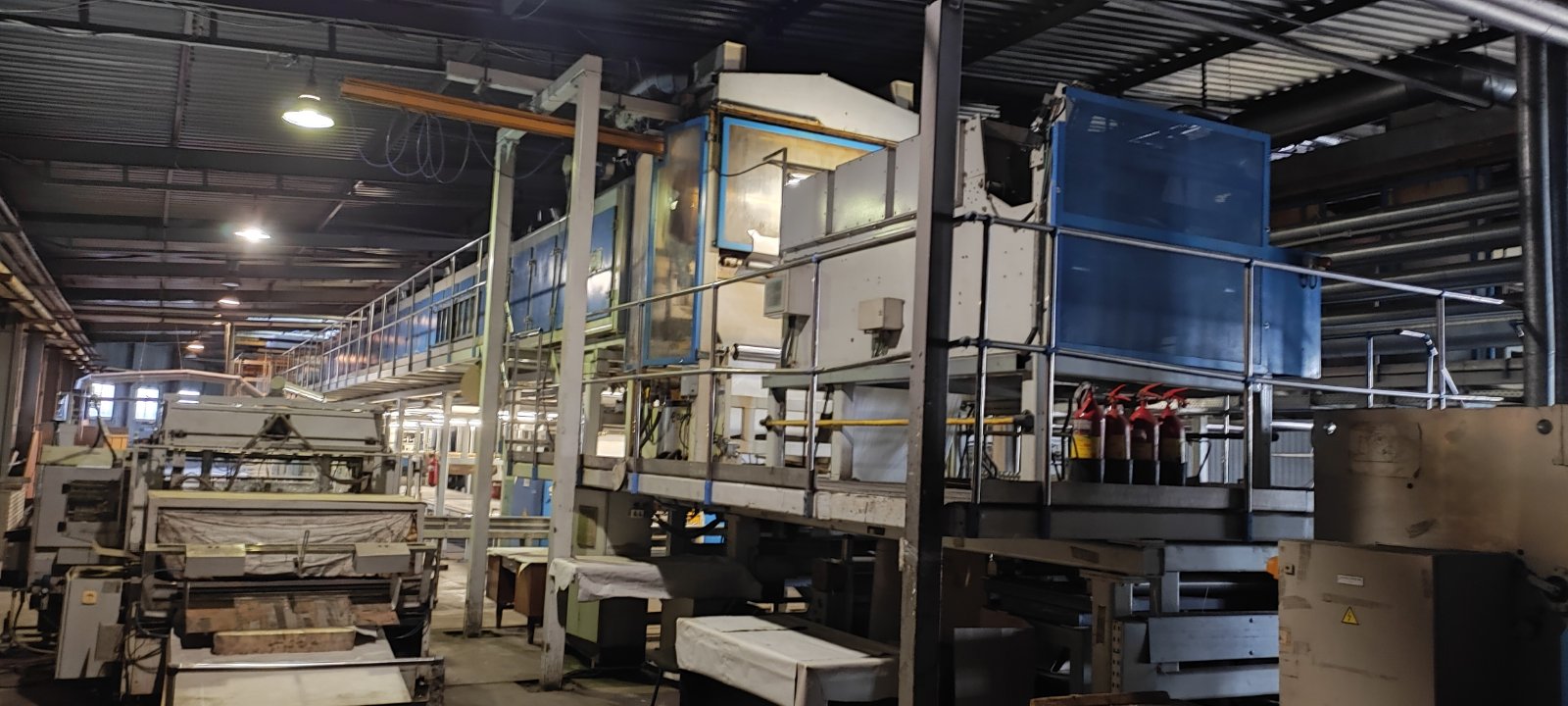

Olbrich Tief-/Siebdruckstation E – Equipment for wallpaper production

Available

  • Production Year
  • No Colors

Reference number: A4P02286

Equipment for wallpaper production Can apply an eight-color coating to the base with final packaging in consumer rolls Non-woven or paper material can be used as a base, as well as other types of bases upon agreement with the manufacturer of the equipment Can produce the following groups of wallpaper: hot embossing, foamed vinyl, paintable wallpaper Width: 0.53 – 1.06 m Maximum mechanical speed: 150 m/minute Production speed – 60-110 m/minute Full power consumption of electricity – 409 kW/hour Effective power consumption of electricity – 290 kW/hour Temperature of heat transfer agent (oil): 3000 ℃ Pressure of compressed air: 6 bars Printing line length: 58,3 m Printing line width: 7,5 m Productivity (24 hours): an average of 6 000 rolls (depending on design) Rolls produced: 25.2 million MAIN COMPONENTS OF THE PRINTING LINE: Automatic bobbin unwinding and gluing unit Unit for preliminary drying, tensioning and cooling of the base Table for longitudinal leveling of base Printing stations – 8 racks/columns – intaglio/gravure printing or screen printing (to choose from): – 1-st – 2-nd racks/columns – with double drying chamber and cooling system – 3-rd – 7-th racks/columns – with drying chamber and cooling system – 8-th rack/column – without oven and cooling Video monitoring system of the base – WEB VIDEO4 (Eltromat) Glitter scattering unit Longitudinal drying channel (six sections) Cooling unit Printed cloth flatten area Infrared rays zone Embossing area Lifting device Adjustment device of register Cutting, trimming and edge removal system Pulling at accumulation of wallpapers Winding and cutting machine into rolls Packing machine Main control panel Electrical switchboards (electronic equipment by Siemens

Please note that this description may have been translated automatically. Contact us for further information. The details are only indicative.
