Olbrich Siebdruckstation E – Varnishing & Coating Equipment

Available

  • Production Year
  • No Colors

Reference number: A4P02288

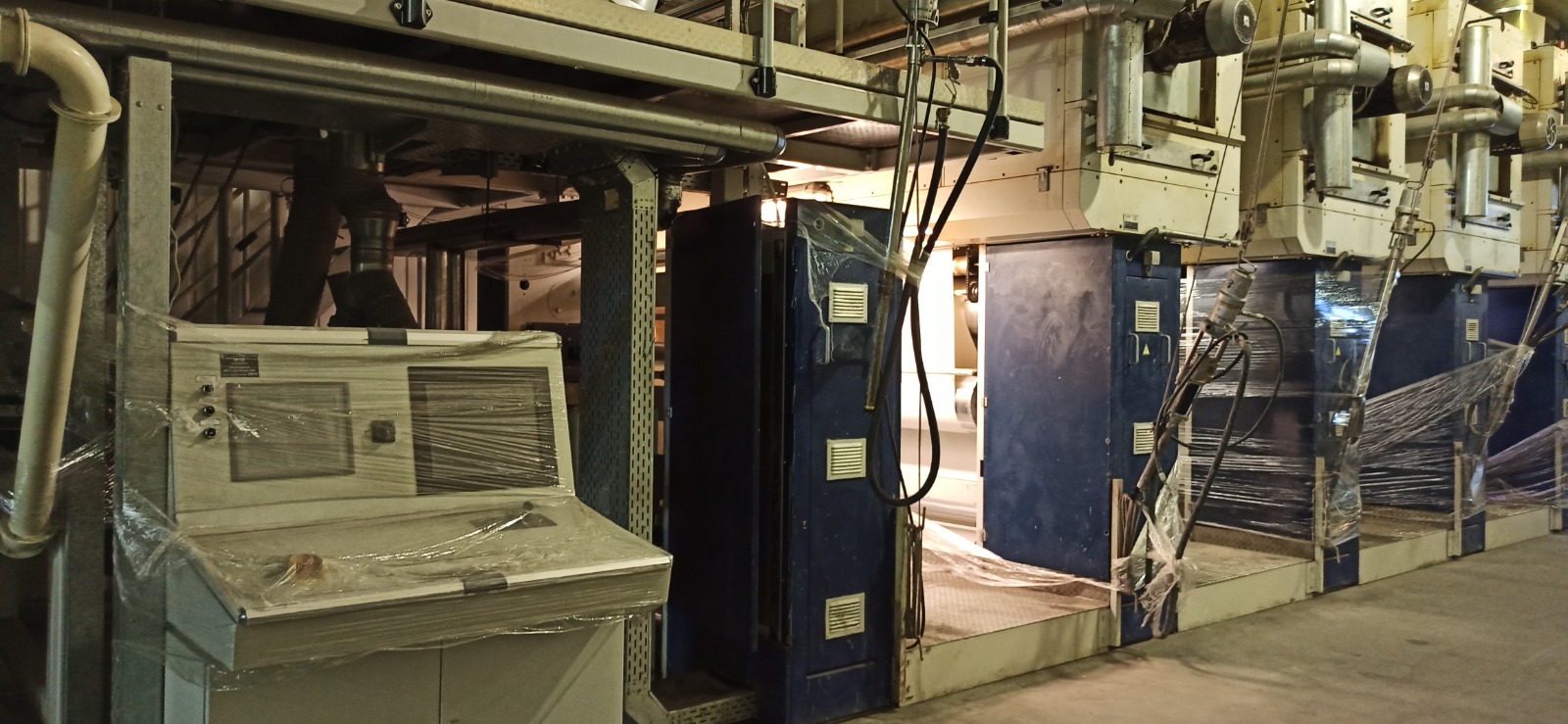

Manufactured 2007 Year of equipment conservation: 2018 Six-color coating Width: 0.53 – 1.06 m Mechanical speed: 5-150 m/minute Production speed: 60-110 m/minute Temperature of heat transfer agent (oil):3000 ℃ Pressure of compressed air: 6 bars Production capacity (24 hours): 6,000 rolls/day (depending on design). Counter: 12 million rolls MAIN COMPONENTS OF THE PRINTING LINE: Automatic bobbin unwinding and gluing unit Unit for preliminary drying, tensioning and cooling of the base Table for longitudinal leveling of base Printing stations – 6 racks/columns/: – 1-st – rack/column – intaglio/gravure printing or screen printing (to choose from), with double drying chamber and cooling system; – 2-nd – 5-th racks/columns – only screen printing, with one drying chamber; – 6-th rack/column – only screen printing, without oven and cooling; Video monitoring system of the base Glitter scattering unit Longitudinal drying channel (six sections) Cooling unit Printed cloth flatten area Cutting, trimming and edge removal system Pulling at accumulation of wallpapers Winding and cutting machine into rolls Packing machine Main control panel Electrical switchboards (electronic equipment by Siemens)

Please note that this description may have been translated automatically. Contact us for further information. The details are only indicative.
