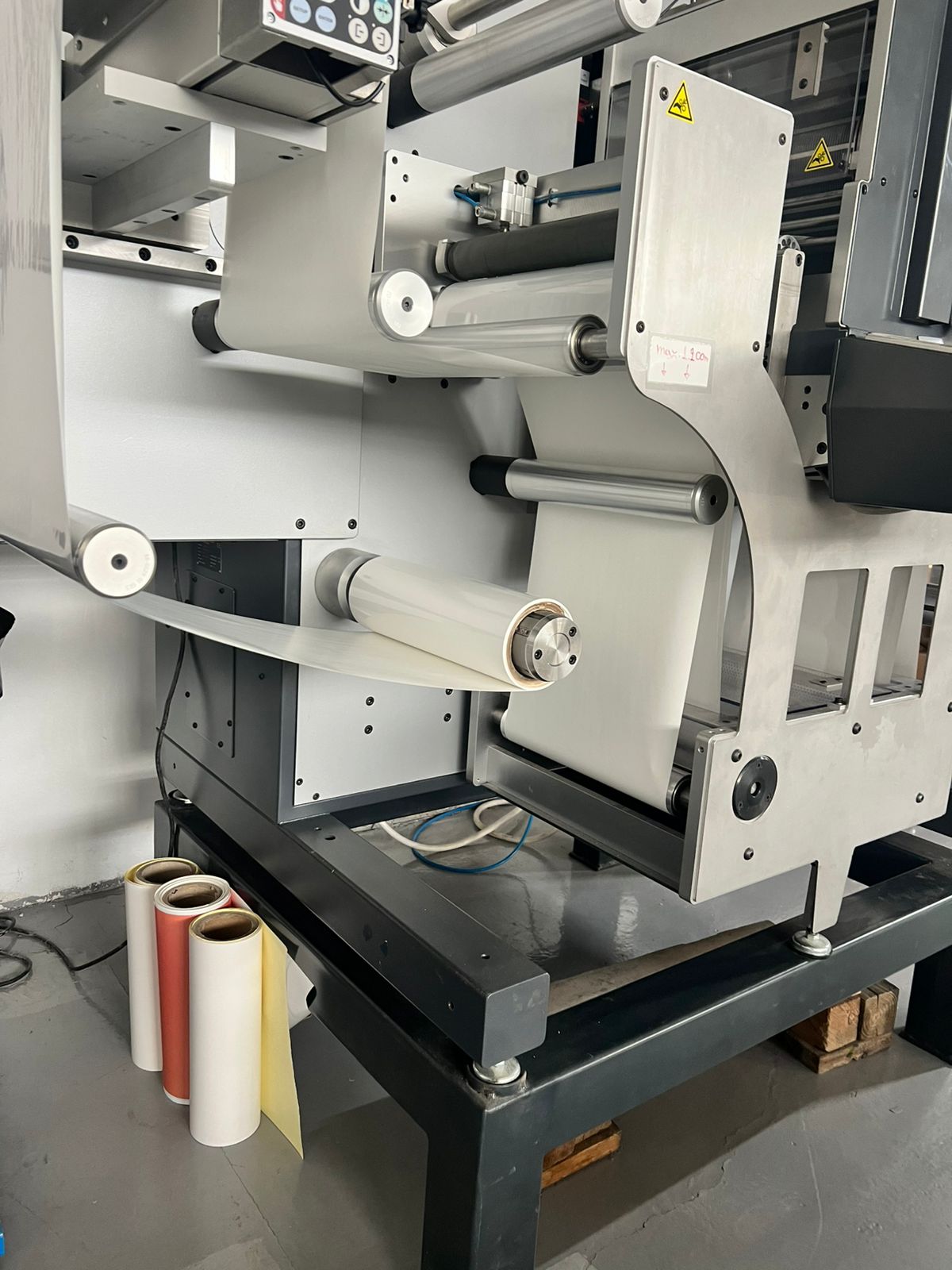

GM DC Nano 330 – Label finishing machines

Available

  • Manufacturer
  • Production Year

Reference number: A4P02272

Web Width: 200 – 330 mm Substrate Thickness: 20 – 200 microns Unwinder maximum reel diameter: 500 mm BST Web Guide – Servo-driven web-tension control Precision Cutting to reduce waste Lamination Unit maximum diameter: 300 mm Semi and Full-Rotary Die Cutting Unit Repeat Length: 2 – 22” Speed semi-rotary: 32 m/minute Speed full-rotary: 50 m/minute Die plate size: 50,8 – 558,8 mm Splice Table Rewinder maximum reel diameter: 400 mm Slitting Unit with pneumatic crush knives Matrix Waste Rewind 10” Color Touch Display Power and Air: 3x 400V+N+PE / 16 A / 5 bar air

Please note that this description may have been translated automatically. Contact us for further information. The details are only indicative.
