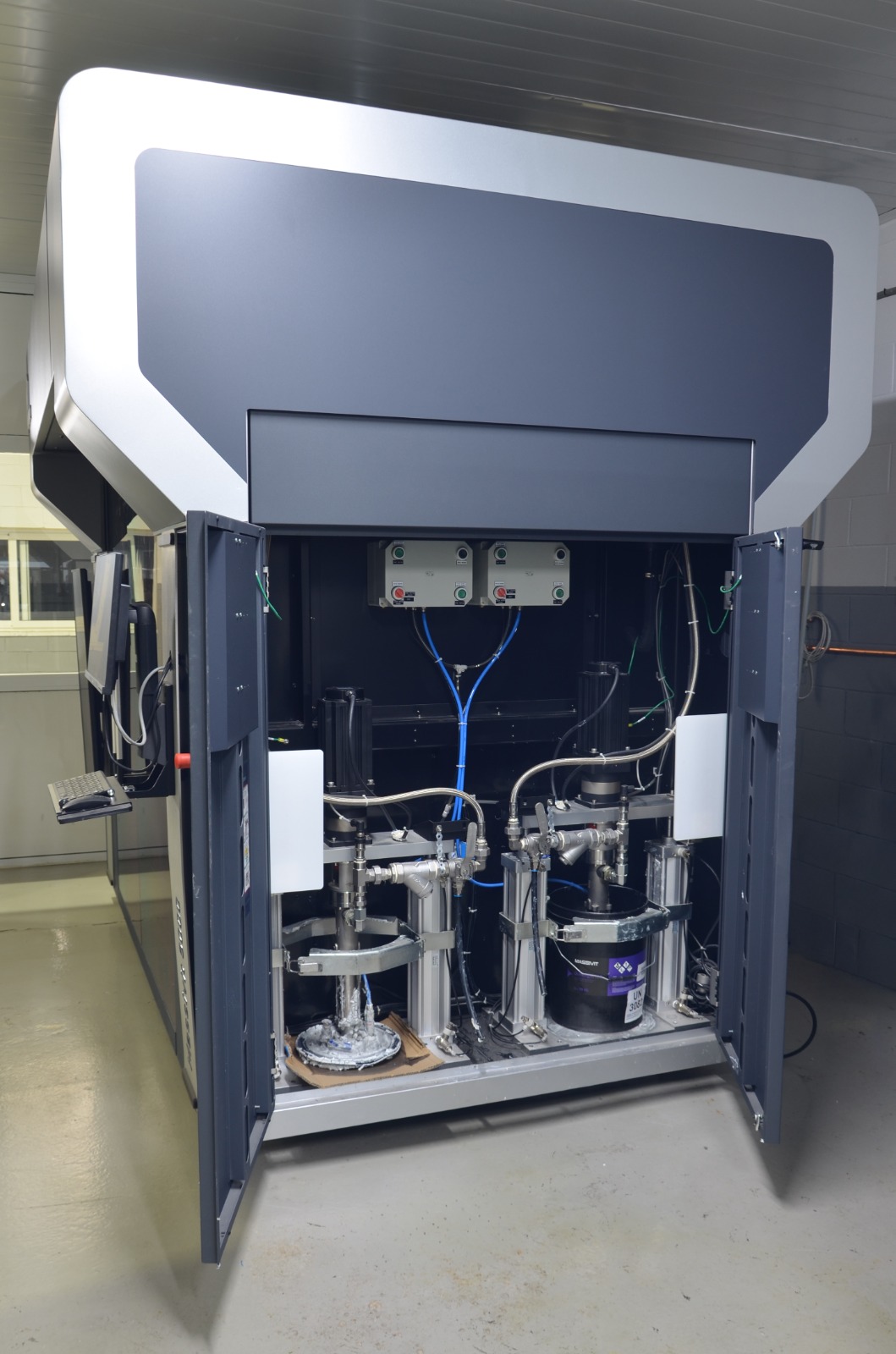

Massivit 3D 5000 – 3D Printers

Available

  • Production Year

Reference number: A4P02197

Working hours: 70 hours 3D printing machines for large format Printing Technology: Gel Dispensing Printing (GDP) – Photocurable gel extrusion printing Materials: Dimengel (patented photocurable gel) BUILD VOLUME: Maximum Print Volume: X-axis: 1450 mm Y-axis: 1110 mm Z-axis: 1800 mm Total Volume: 1.65 cubic meters PRINT SPEED: Maximum Print Speed: Up to 300 mm/second (depending on the size and geometry of the part) PRINT RESOLUTION: X/Y axis resolution: 1.4 mm Z-axis resolution: 1.3 mm Layer thickness: 0.85 – 1.5 mm EXTRUSION SYSTEM: Number of print heads: 2 independent print heads (allows printing multiple objects simultaneously or with different materials) Extrusion system: High capacity for large volumes of photocurable gel PRINTING MATERIALS: Material type: Dimengel 100, Dimengel 90, and other proprietary photocurable materials Material properties: Fast curing under UV light Materials for applications such as large prototypes, molds, displays, and functional parts Material colors: Various gel colors, including transparent options INTERFACE AND CONTROL: Control screen: 10.1-inch color touchscreen Connectivity: Ethernet, Wi-Fi Software: Massivit SMART slicer Optimizes material usage and print time Compatible with STL and OBJ files FEATURES PRINTING FEATURES: Hollow Printing: Enables printing with thin walls and hollow structures for material and weight savings Fast Printing: Ability to create large models in hours instead of days, ideal for large-scale displays and prototypes POST-PROCESSING: UV Curing: Integrated inline UV curing system, allowing immediate curing of printed parts Finishing Options: Parts can be sanded, painted, or subjected to other post-printing treatments APPLICATIONS: Advertising and visual displays Large-scale rapid prototyping Mold and composite part production Automotive, marine, architectural, and more POWER SUPPLY: Voltage: 230V AC (single-phase) Power Consumption: 5.5 kW OPERATING ENVIRONMENT: Operating Temperature: 15-30°C Relative Humidity: 30-70% (without condensation)

Please note that this description may have been translated automatically. Contact us for further information. The details are only indicative.
